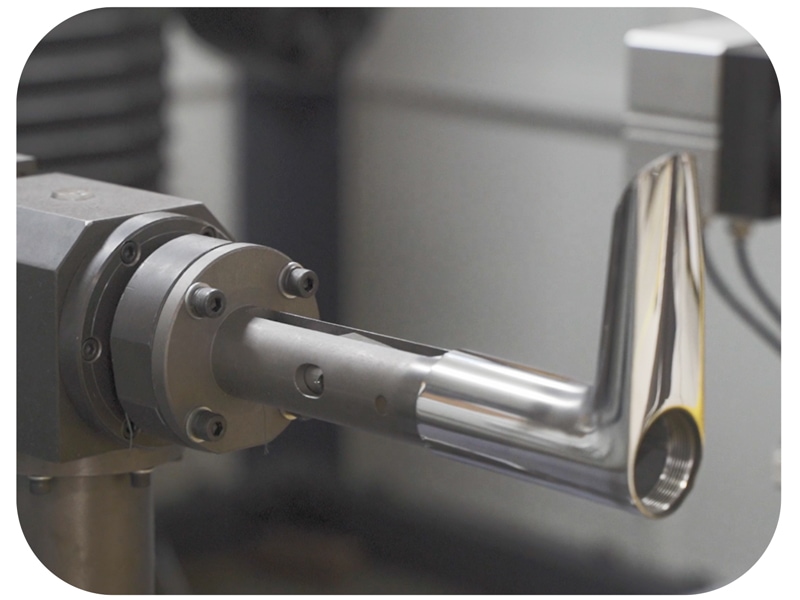

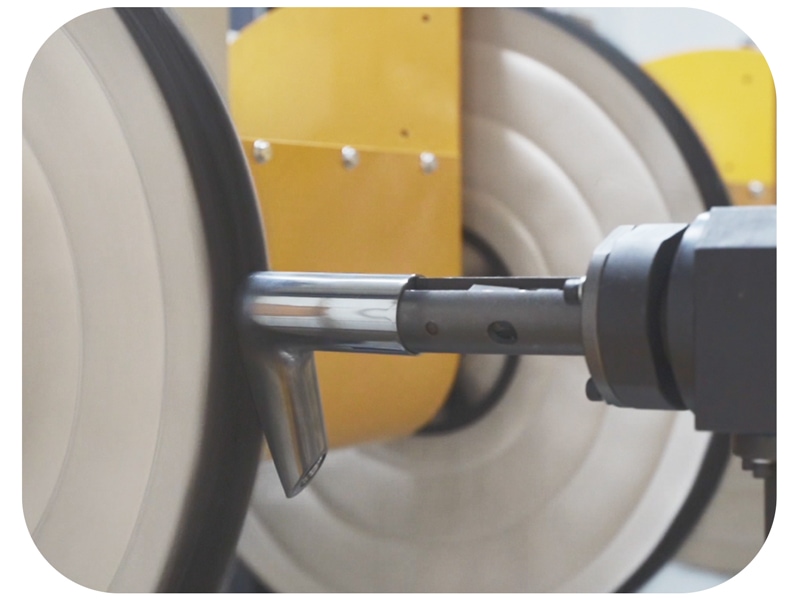

Stainless Steel Door Handle Polishing
- Unit Type
- CNC Polishing
- Polishing Consumables
- Cloth wheel, solid wax
- Control System
- HUST(TAIWAN)
- Servo Drive
- HUST(TAIWAN)
- Switchgear
- Schneider
- Contactor
- SIEMENS AG
Solution Name: Stainless Steel Door Handle Six Axis Four Station CNC Polishing Machine
Safety Working
1. During normal operation of the CNC polishing machine, the noise value measured outside the protective cover is less than 80 decibels.
2. Emergency stop button, safety check switch: When the safety door or operating window of the device is open, the power system of the device remains completely stopped.
3. In order to avoid the failure of workpiece clamping, the workpiece is ejected outward and the eject direction is designed downward; Operated window glass is made of double layer tempered glass.
4. A set of programs can be provided for direct production from KS technology.

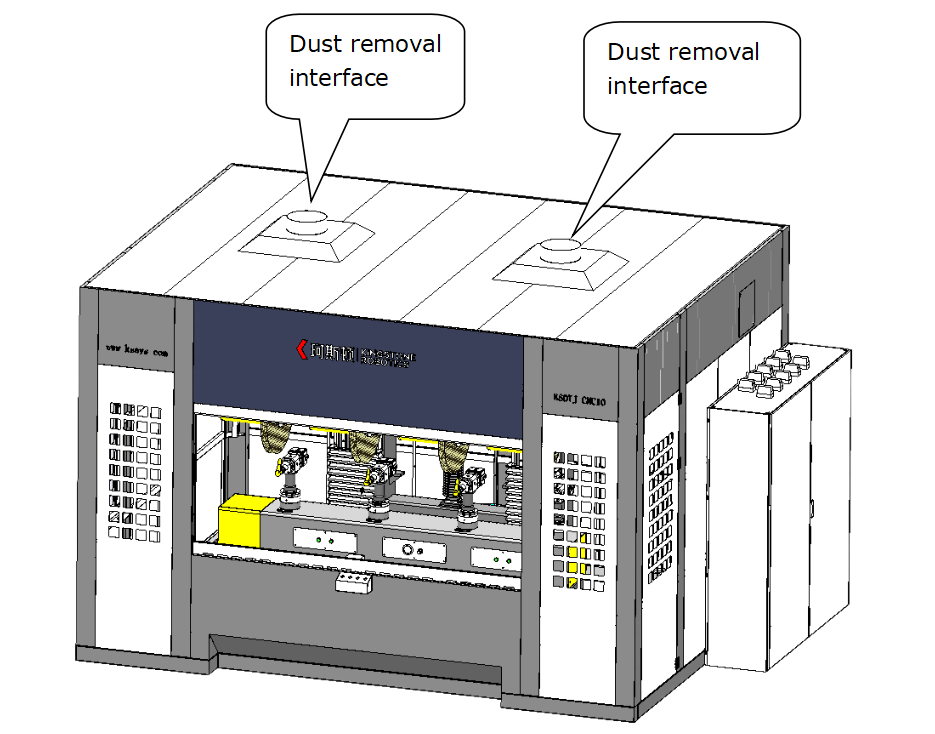

Dust Removal Interface
KS will reserve 2 dust collecting holes above the workshop (hole diameters according to customer requirements), customers can connect the interface with their own dust control system.
| Description | Unit | Specification |
|---|---|---|
| Table | ||
| Table size (LxW) | mm | 2760*395 |
| Height from ground (without fixture) | mm | 890 |
| Fixture rotating speed | rpm | 20 |
| Number of work stations | 4 | |
| Station size/Working Dia. (max) | mm | 350 |
| Number of Program Stores | set | ≥500 |
| Table Type | Movable - table moving by the screw rod/ball screw. | |
| Driven by servo motor. | ||

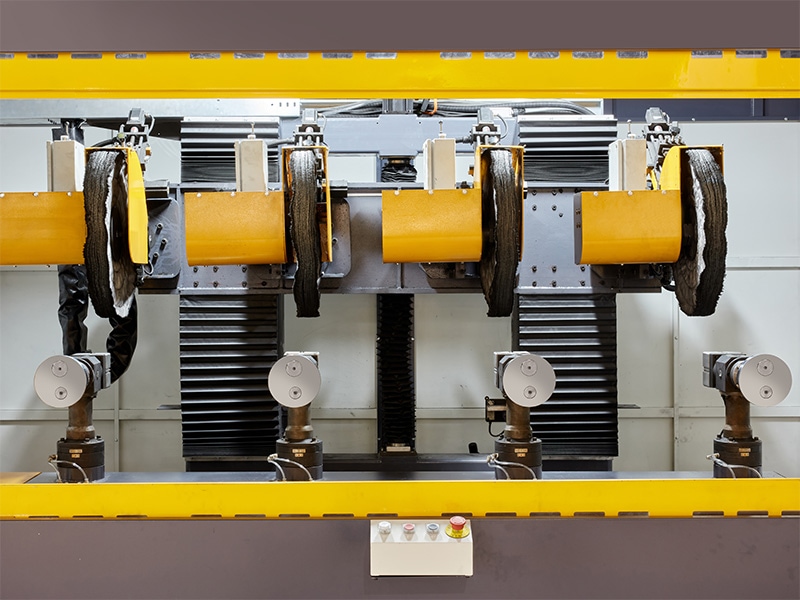

| Buffing/Polishing Heads | ||
| Number of head | 4 | |
| Main Spindle Polishing Motor | KW | 11.6 (4 nos. x 2.9 kw each) |
| Permissible Work Height | mm | 300 |
| Polishing wheel size (consumable) | mm | 600*60*10 mm |
| Polishing compound (consumable) | Type | Solid Wax |
| Polishing compound size (consumable) | mm | 350*60*10 mm |
| Polishing compound application | Automatic device for the solid compound feeding to the polishing wheel on a regular timing basis. | |
