Selection and Process Planning of Automated Grinding

Date: | Author: Site Editor |Visit: 126

Automated grinding technology has become a cornerstone in modern manufacturing, offering precision, efficiency, and consistency. This article delves into the various types of automated grinding methods, key considerations for selecting appropriate solutions, critical factors in process planning, and real-world case studies to illustrate successful implementations.

Types of Automated Grinding Methods and Their Applications

1. Fixed Automation

Fixed automation systems are designed for high-volume, repetitive tasks with minimal variation. They are characterized by their rigidity and efficiency in producing uniform products.

  • Typical Applications: Mass production environments where the product design remains constant over extended periods.
  • Advantages: High production rates and low unit costs.
  • Limitations: Lack of flexibility to accommodate product variations or design changes.

Selection and Process Planning of Automated Grinding

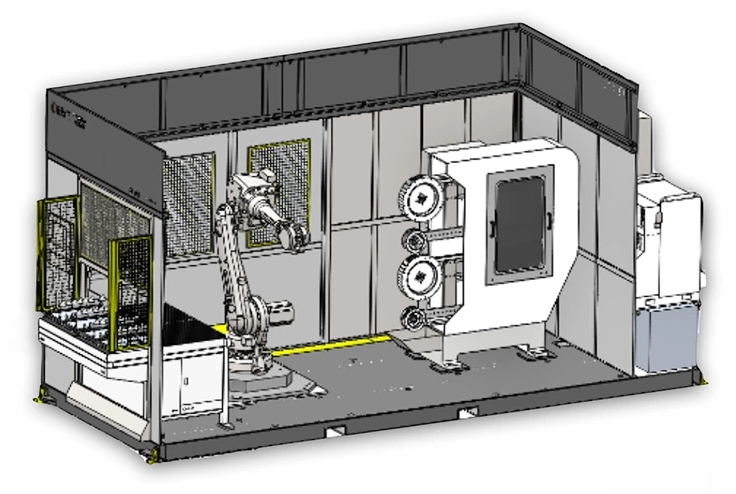

Simple Automation Work Station

2. Flexible Automation

Flexible automation systems are capable of adapting to different product designs and production volumes. They utilize programmable robots and advanced control systems to handle variability.

  • Typical Applications: Industries requiring customization, small batch sizes, or frequent product changes.
  • Advantages: High adaptability, reduced downtime during product changeovers.
  • Limitations: Higher initial investment and potential complexity in programming and maintenance.

Selection and Process Planning of Automated Grinding

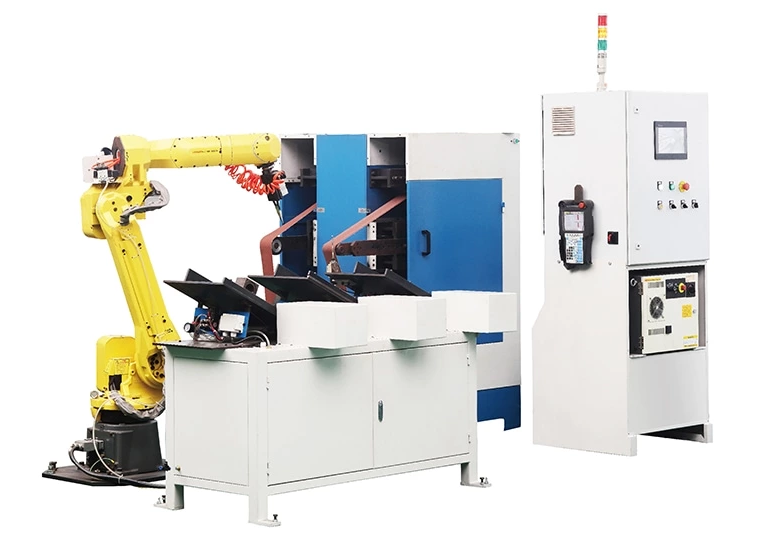

Automation Robitic Work Station

3. Hybrid Automation

Hybrid automation combines aspects of both fixed and flexible automation, offering a balance between high efficiency and adaptability. It integrates robotic systems with modular configurations to handle varied tasks.

  • Typical Applications: Industries requiring both mass production and periodic customization.
  • Advantages: Optimized production rates with greater flexibility.
  • Limitations: Requires strategic planning to balance cost and complexity.

Selection and Process Planning of Automated Grinding

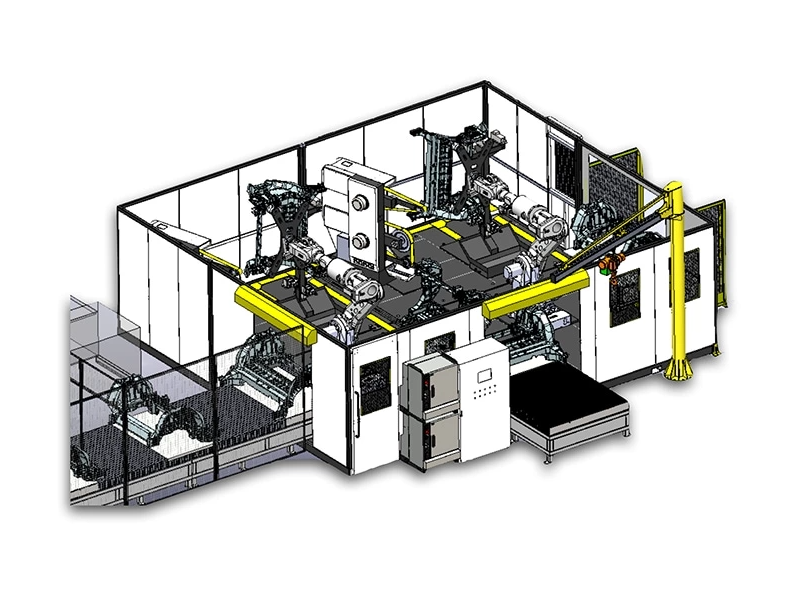

Multi-Robot Arm Workstation

Key Considerations in Selecting Automated Grinding Solutions

1. Workpiece Characteristics

  • Shape, Size, and Material: The geometry and material properties of the workpiece influence the choice of grinding equipment and parameters.
  • Complexity and Precision Requirements: Complex shapes or tight tolerances may necessitate advanced robotic systems with precise control capabilities.

2. Production Volume and Batch Size

  • High-Volume Production: Justifies investment in fixed automation due to economies of scale.
  • Low-Volume, High-Mix Production: Benefits from flexible automation to accommodate variability without significant retooling.

3. Quality and Tolerance Specifications

  • Consistency and Precision: Automated systems can maintain uniform quality, essential for meeting stringent industry standards.
  • Surface Finish Requirements: Specific applications may demand particular surface finishes, influencing the selection of grinding tools and processes.

4. Integration with Existing Processes

  • Compatibility with Other Systems: Ensuring new automation solutions align with existing workflows and equipment.
  • Scalability: Allowing for future expansion and upgrades to accommodate evolving production needs.

Selection and Process Planning of Automated Grinding

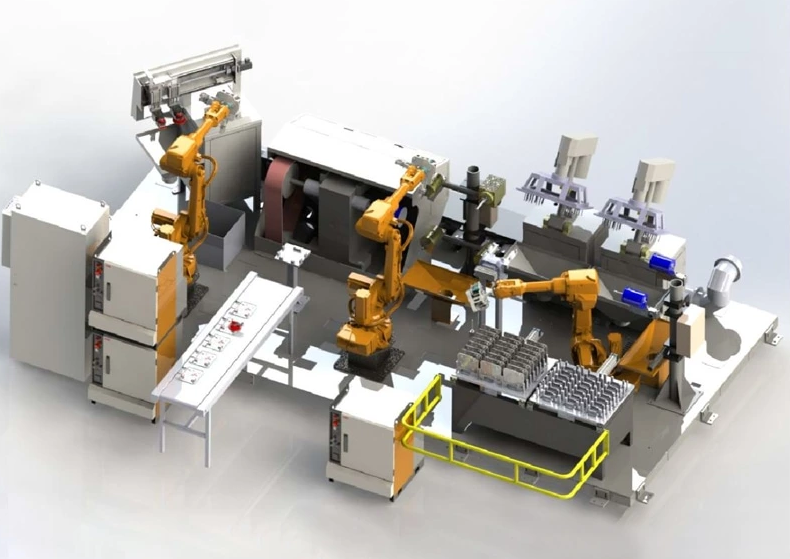

Integrated Fully Automatic Robotic Workstation

Critical Factors in Process Planning for Automated Grinding

1. Defining Grinding Objectives

  • Dimensional Accuracy: Ensuring the workpiece meets specified measurements.
  • Surface Integrity: Achieving the desired surface properties without inducing defects.

2. Robotic Path Planning

  • Trajectory Optimization: Developing efficient tool paths to minimize cycle time and wear.
  • Collision Avoidance: Ensuring the robot operates safely within its environment.

3. Selection of Abrasives and Tools

  • Material Compatibility: Choosing abrasives that are suitable for the workpiece material to achieve optimal results.
  • Tool Geometry and Specifications: Selecting tools that align with the desired surface finish and material removal rates.

4. Implementation of Force Control Technology

  • Active vs. Passive Force Control: Deciding between systems that actively adjust force in real-time versus those with preset compliance.
  • Sensor Integration: Utilizing sensors to monitor and adjust the applied force, ensuring consistent contact and quality.

5. Environmental and Safety Considerations

  • Dust and Debris Management: Implementing dust extraction and filtration systems to maintain workplace safety.
  • Noise Reduction: Designing enclosures or noise-dampening solutions to minimize sound pollution.

Selection and Process Planning of Automated Grinding

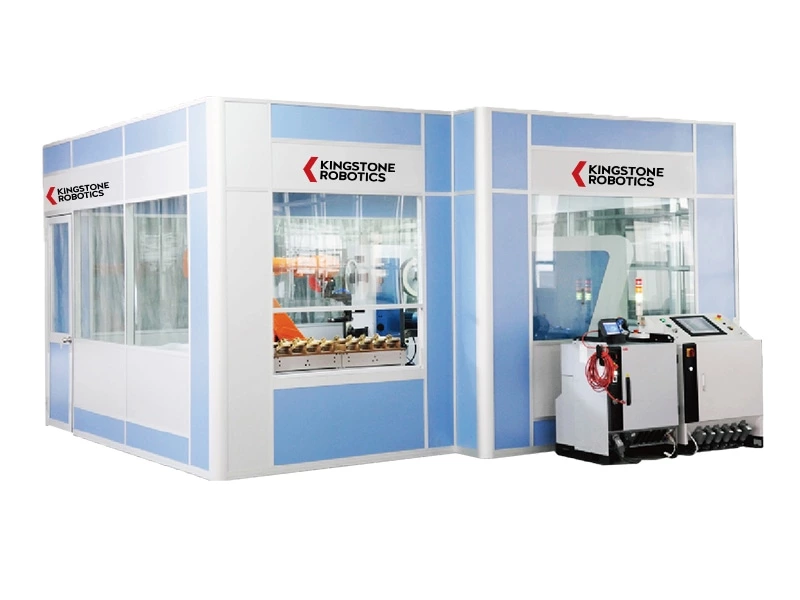

Enclosed Workstation

Case Studies of Automated Grinding Implementations

Case Study 1: Copen Machine's Integration of Automated Grinding and Swiss-Turning

  • Background: Copen Machine, founded in 1978 in Akron, Ohio, evolved from a small job shop into a full-service machining and fabrication provider specializing in high-volume precision parts.
  • Solution: To achieve reliable high-volume production, the company implemented 24-hour operations combining CNC Swiss-style turning machines with automated CNC cylindrical grinding operations.
  • Outcome: This integration enhanced production efficiency and precision, enabling Copen Machine to meet increasing demands and maintain competitiveness.

Case Study 2: Robotic Grinding of Small Parts by MESH Automation

  • Background: A manufacturer required multiple grinding machines for small castings, aiming for efficient tray loading and minimal operator intervention.
  • Solution: MESH Automation employed their MACGrind platform, integrating pre-engineered belt/wheel compensation stands, reamers, and pencil grinding stands, along with a gripper auto tool changer and regrip station.
  • Outcome: The system achieved over 90% efficiency, reducing labor costs and improving consistency in the grinding process.

Case Study 3: Globe Grinding's Transition to Automation

  • Background: Globe Grinding sought to increase production without adding personnel by transitioning to automation.
  • Solution: The company planned to integrate automation into their grinding processes, building upon their use of CNC technology since 2000.
  • Outcome: This transition aimed to enhance efficiency and maintain high-quality standards in their operations.

KS Robotics' Expertise in Automated Grinding Solutions

1. Customized Solution Development

  • Client Needs Assessment: Conducting thorough analyses to understand specific requirements and constraints.
  • Tailored System Design: Developing solutions that align with the client's production goals and operational environment.

2. Integration and Implementation

  • Seamless Integration: Ensuring new systems are compatible with existing production lines and processes.
  • Comprehensive Training: Providing training programs to equip staff with the necessary skills to operate and maintain the new systems.

3. Continuous Support and Optimization

  • Ongoing Maintenance: Offering regular system check-ups and updates to maintain optimal performance.
  • Process Optimization: Identifying opportunities for further improvements in efficiency and quality.

The Future of Automated Grinding

The evolution of automated grinding technology continues to push the boundaries of precision and efficiency. Advances in AI-driven adaptive control, improved force feedback mechanisms, and integration with Industry 4.0 concepts will further enhance automation in grinding applications. Companies investing in robotic grinding solutions today will position themselves for long-term success in the competitive manufacturing landscape.

Emerging Trends in Automated Grinding

  • AI and Machine Learning Integration: Enhancing system adaptability and predictive maintenance.
  • Advanced Vision Systems: Improving defect detection and process monitoring.
  • Sustainable Practices: Developing eco-friendly abrasives and energy-efficient automation solutions.
  • Collaborative Robotics (Cobots): Enabling safer and more efficient human-machine collaboration in grinding tasks.

By embracing these advancements, manufacturers can stay ahead in the ever-evolving field of automated grinding, achieving superior quality, efficiency, and sustainability in their operations.
